How to Clean and to Oil a Sewing Machine

How to Clean and to Oil a Sewing Machine

Your sewing machine is too noisy? In this case you need to clean and to oil the sewing machine. Here you will find instructions of oiling and cleaning.

Every model of sewing machines needs periodic lubrication and cleaning, anyway some mechanisms. Particularly often needs oiling for older models of sewing machines having only metal parts. After lubrication such sewing machine will work gently and more quietly.
Note: Some modern models of sewing machines do not need to be lubricated. But any sewing machines require periodic removing dust and threads scraps from feed dog areas and shuttle device.

Note: For oiling any sewing machines you must to use only special oil designed for lubrication the sewing machines only.

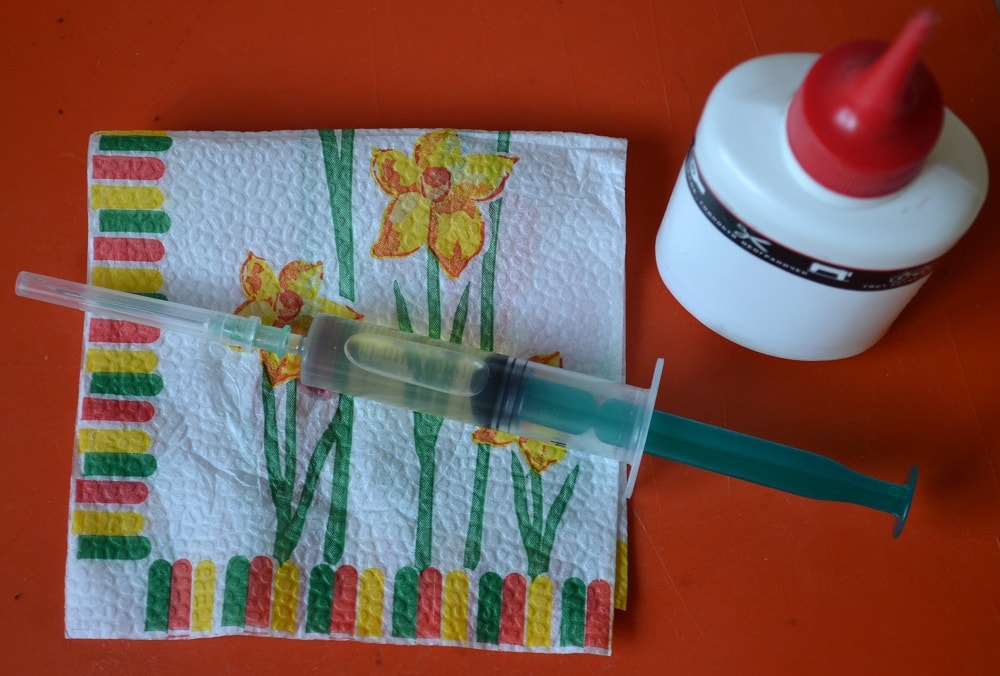

For oiling use a medical syringe

For oiling use a medical syringe

For getting best oiling results you can use an usual plastic medical syringe. With long and thin needle you can to oil any hard-to-reach places. In addition to this, you can to control oil flow and the oil will not drop on working surfaces of sewing machine.

For oiling and cleaning your sewing machine you need have a screwdriver and a stiff brush.

Select medium-sized medical syringe

Select medium-sized medical syringe so that it can be inserted into neck of an oil bottle.

Fill the syringe halfway

Do not fill compartment with oil fully. Fill the syringe halfway, such level will be optimal.

How to oil a shuttle mechanism

Removing a needle plate

Now take a medium-sized flat-blade screwdriver and remove from sewing machine a needle plate.

For cleaning shuttle area is intended a special brush

For cleaning shuttle area is intended a special brush (like it) but you can to use any small stiff brush (for example a brush for glue or paint).
Note: Some pieces of lint you can remove using tweezers only.
In any way before oiling you must very good to clean your sewing machine.
Prepare a small soft cloth to wipe away any excess oil.

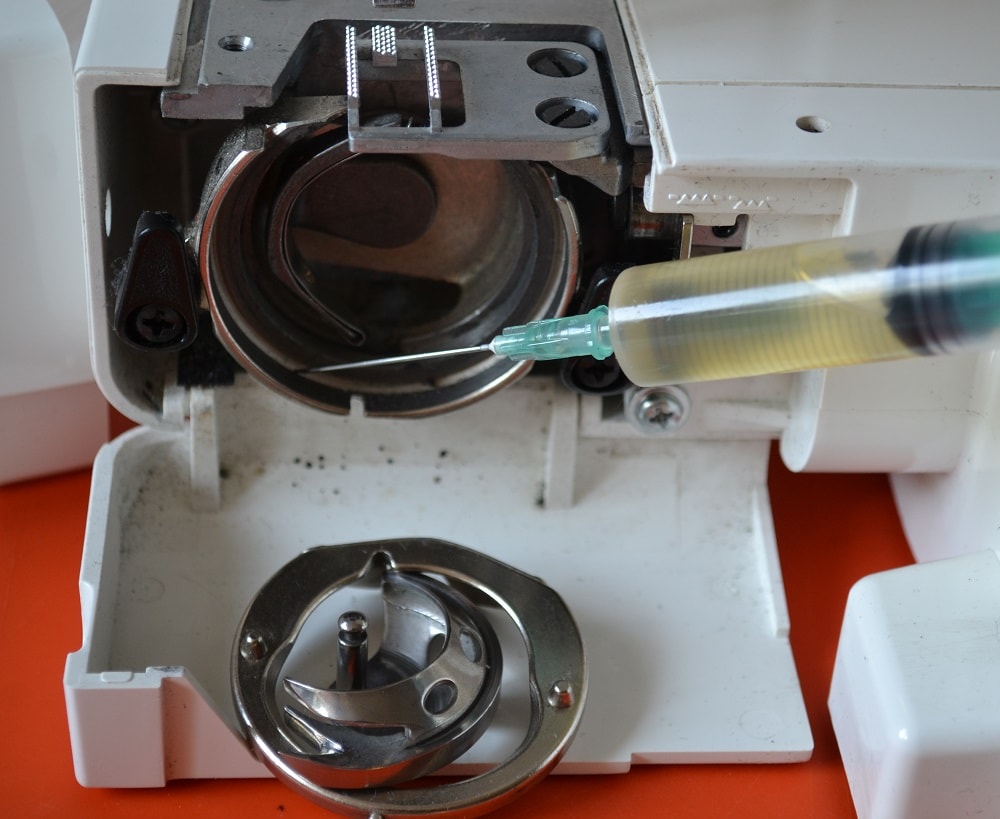

Lubrication a sewing machine with medical syringe

Lubrication of inner details of sewing machine will be easy and economical with using a medical syringe. Try it!

How to remove a front cover

Remove a cap of hole on front cover

Now you need remove this cap from hole on front cover a sewing machine.

Pull away an inner screw with tweezers

Take medium-sized flat-blade screwdriver and unscrew it full. Pull away the inner screw with tweezers.

Gently pull this face cover towards you

Gently pull this face cover towards you and remove it.
Note: Many sewing machines have another design. The lid is not removed but opens.

How to oil a needle bar area

How to oil a needle bar area

Clean this area of needle bar and presser foot thoroughly using a stiff brush. Look all places from top to bottom and in depth and delete a dust if this is required.

How to oil the metal details of needle bar

During the lubrication metal details of this compartment (and others) you need constantly rotate a flywheel by hand.

Cover for bottom part of sewing machine

Most sewing machines have and another mechanisms that need to be lubricated periodically in bottom of body. In this model they are under plastic cover. But to remove this cover you can know how to do it right.

Sewing machine after cleaning and oiling

If your sewing machine after cleaning and oiling is still work noisy, contact a service center.
